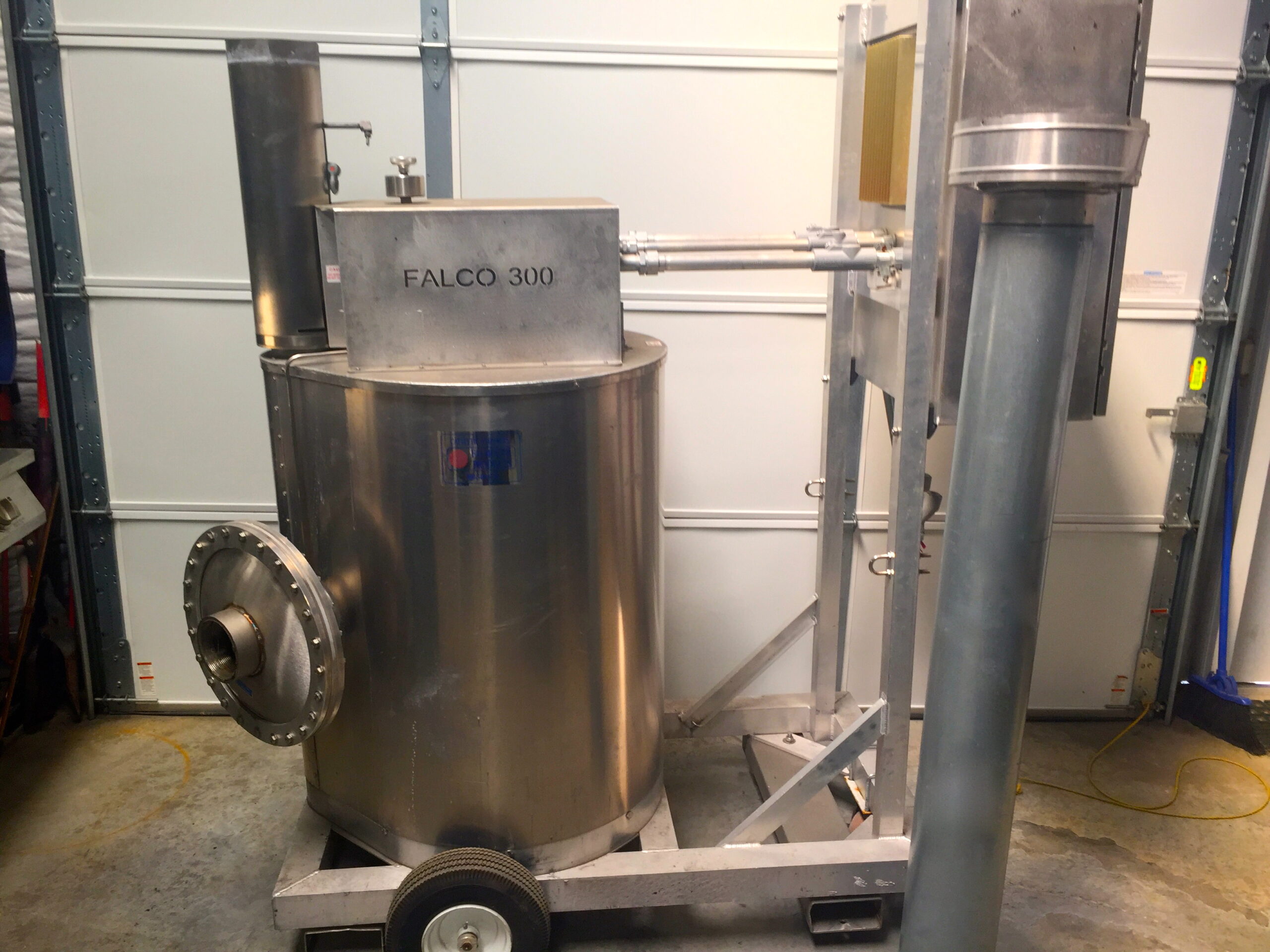

FALCO 300 – Falmouth Products – Catalytic Oxidizer

Very Low Hours

Capacity

100-350 CFM

Max Input Loading

250 lb/day petroleum hydrocarbons @ 350 cfm

Destruction Efficiency
Up to 99.5%

Catalyst Temperature Range

330-620ºC (626-1148ºF)

Catalyst

Packed bed 2.5 cubic feet. Precious metal on 1/8″ ceramic beads is standard. Other catalysts are available.

Heat Exchanger

Stainless steel Spiral plate. 73% Efficient at 300 scfm.

Heater

56 amp @ 208 volts (20.3 kW) or, 64.6 amps @ 240V (27 kW) Solid State Control

Weight

825 lb.

Construction

stainless steel and aluminum

Dimensions

73″ high (excluding 5′ stack) X 70″ long X 29″ wide Fits in the back of a pick up truck.

Power Requirements
3 phase 208-240 Volt, optional 1 phase 240 Volt
