(SVE/SPARGE-71) TRAILER, SVE/AIRSPARGE (#AES-135)(max flow 285 scfm, max vacuum 6.6″hg) *** $27,500 ***

Trailer 135 SVE / Sparge

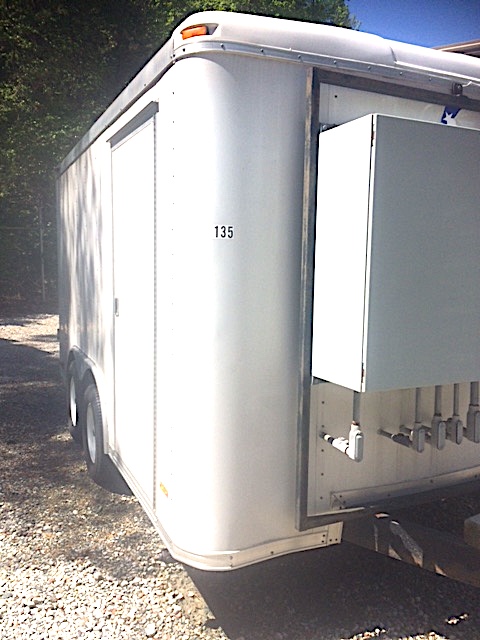

Trailer – Pace 12 X 8 X 8 tandem 3,500lb axles 5 lug 2 5/16” ball

Input –  SqD 230V 3ph 100A disconnect

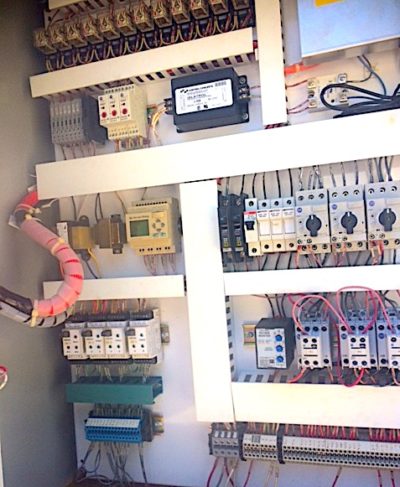

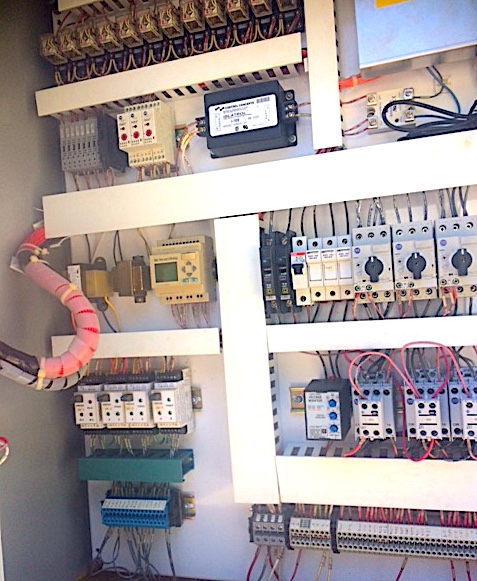

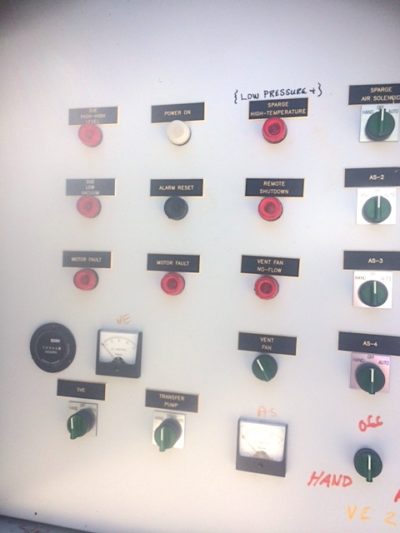

ControlPanel – front mount with dead front controls

Control – relay logic

SVE

2 – 4” inlets with Bitorq auto- actuating valve model SI675A switches both valves with cam arm

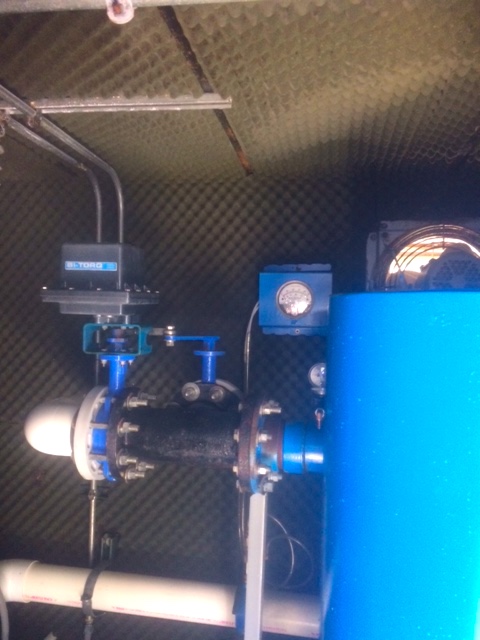

A/W separator tank – Fliteways 120 gal. steel model FV582X3-EN707  with level switches and 3/8” site tube. Temp and vacuum gauge on Vac from pump

Fliteway in line filter

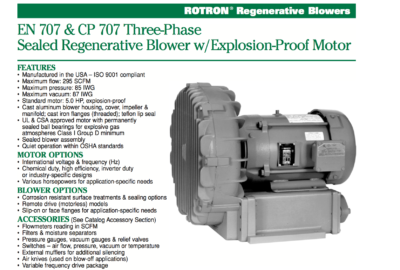

SVE Blower – Ametek model EN707F72 MXL 5hp 3ph 15fla

Flow Max 295 SCFM with 87 ”H2O max. vacuum

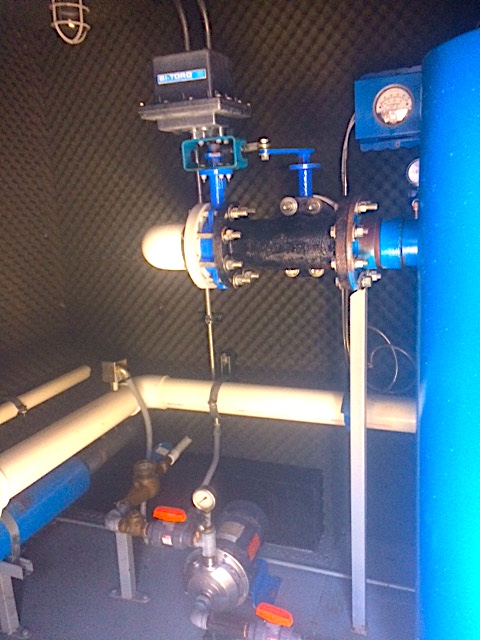

Transfer pump – Gould NPE ST1C 7F4 1/2hp 230v3ph 1.5fla

GPM meter- Istek model 1720 has 645 gallons registered 1” out

16” XP exhaust fan thermostat controlled

Sparge

*Sparge compressor being rebuilt – Kaeser filters

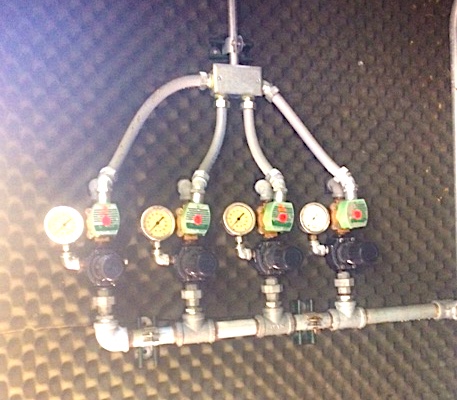

4 – ½” outlets with asco solenoids, regulators and pressure gauges

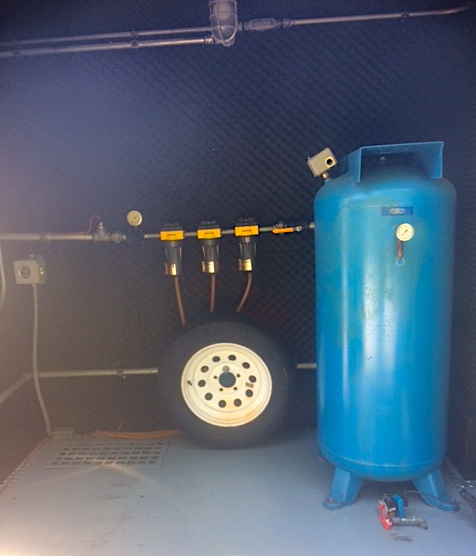

Compressor tank – Fliteway model SX-7 30 gallon tank with drain sol.
