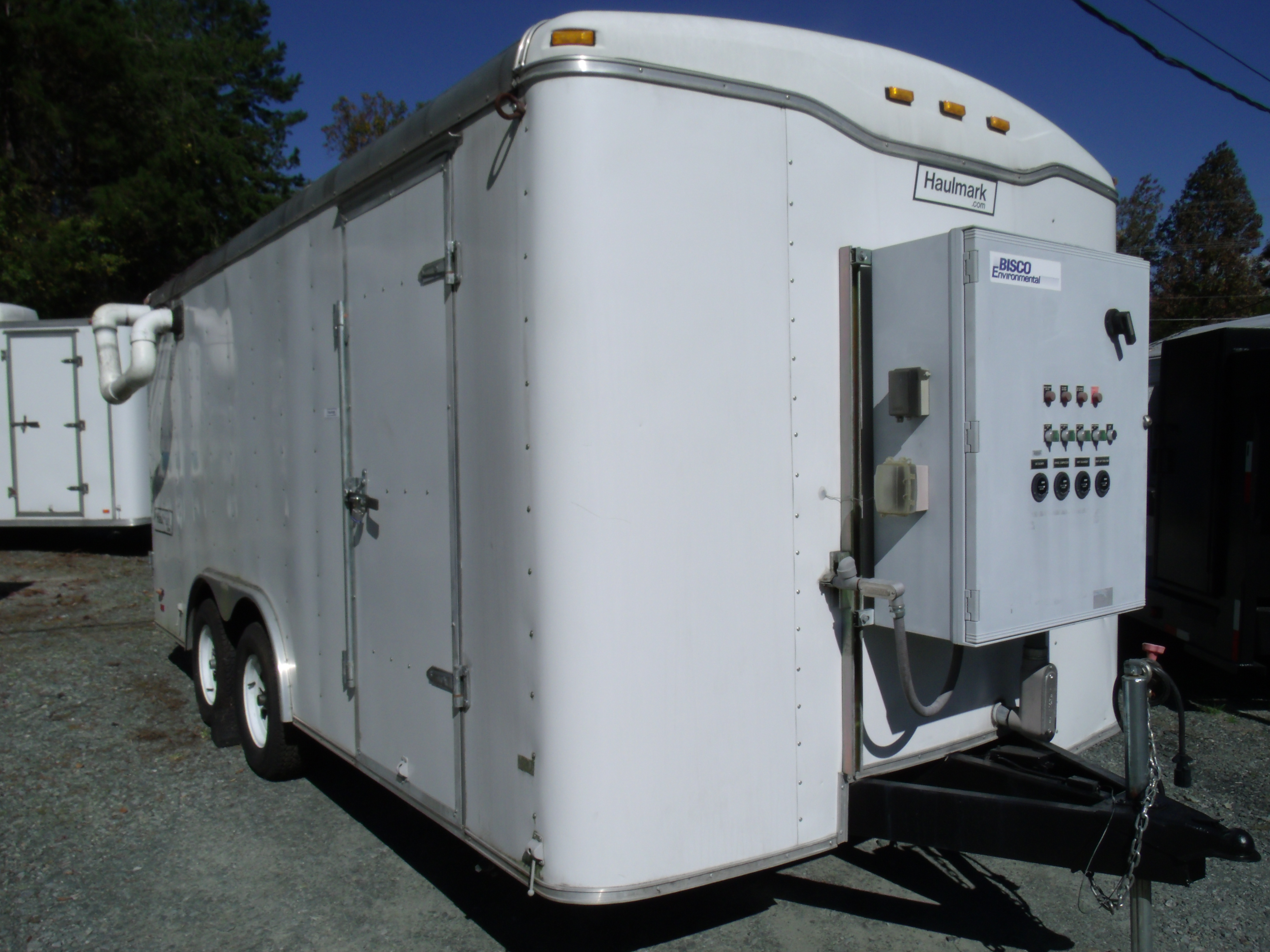

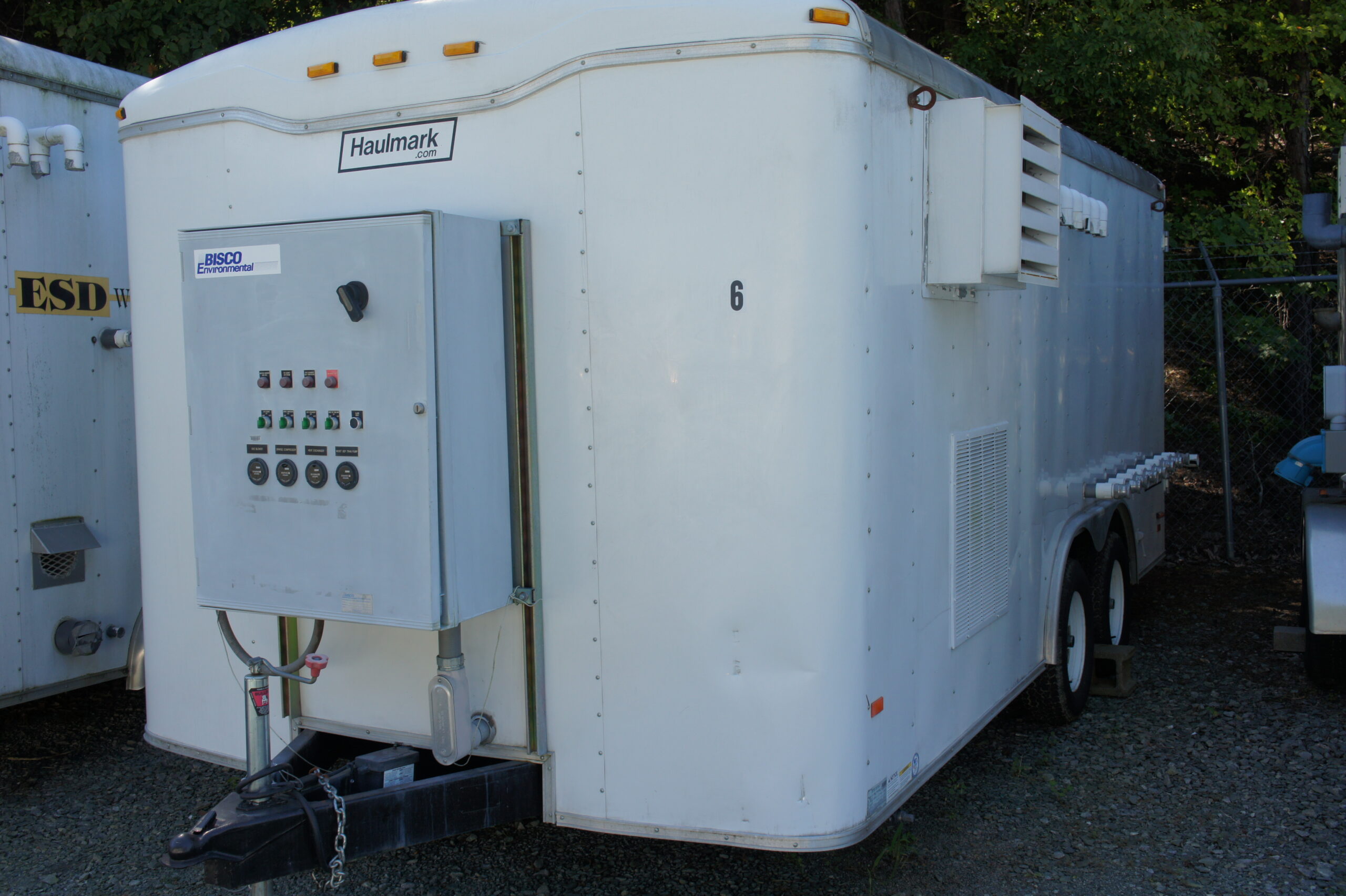

(SVE/AirSparge – 6) Trailer, SVE/Sparge (#AES006)(Max 450 CFM, 13″hg)/(170 CFM @ 27 PSI). *** $35,500.00 ***

                                           SVE/Airsparge

   SVE System

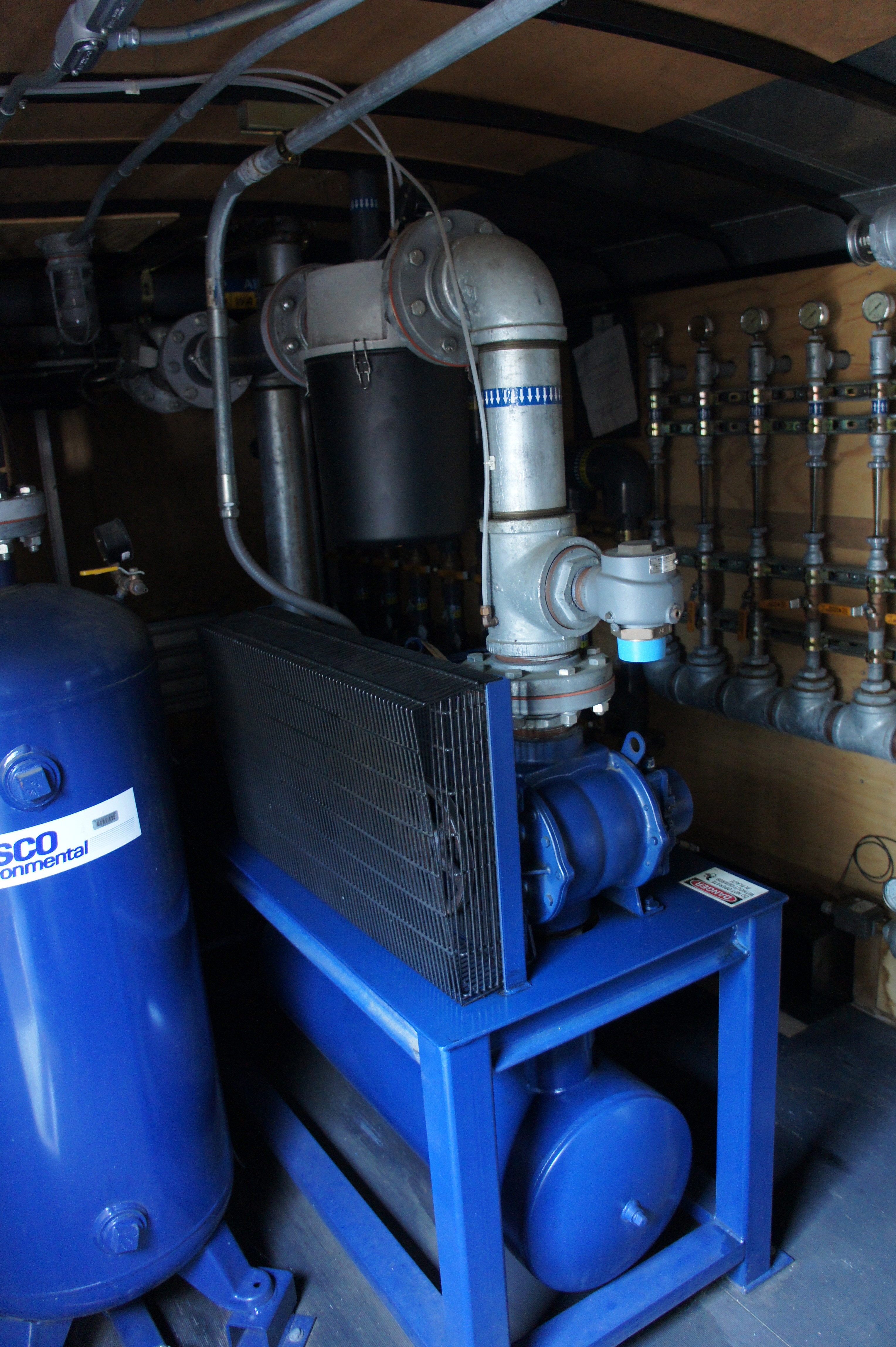

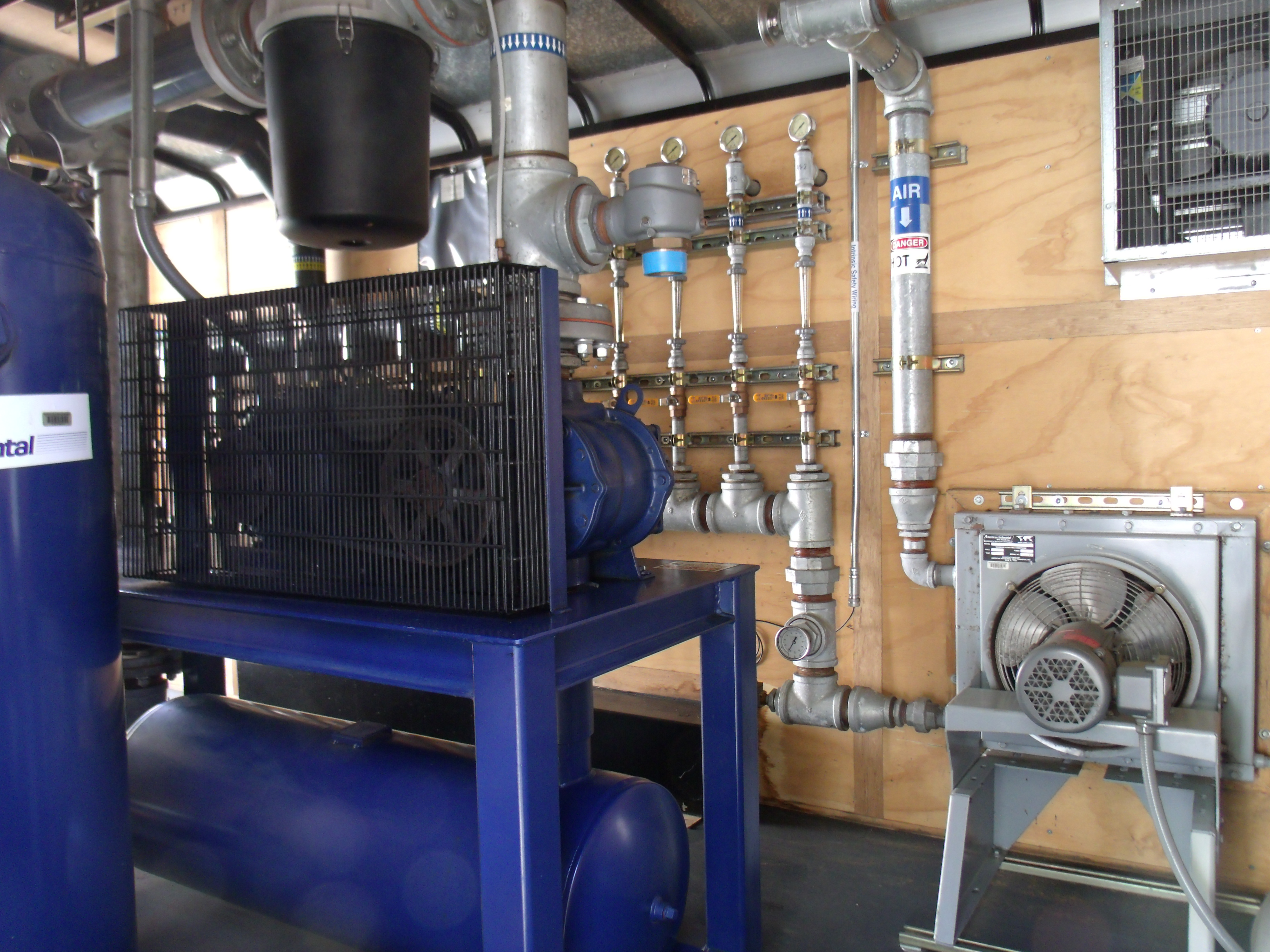

Roots Blower –  47 URAI J –  450 CFM @ 13″hg- Marathon 10hp, 190 / 380 volt, 24/12 amps, frame 215T

https://www.pdblowers.com/product/47-urai-roots-urai-gas-blower/

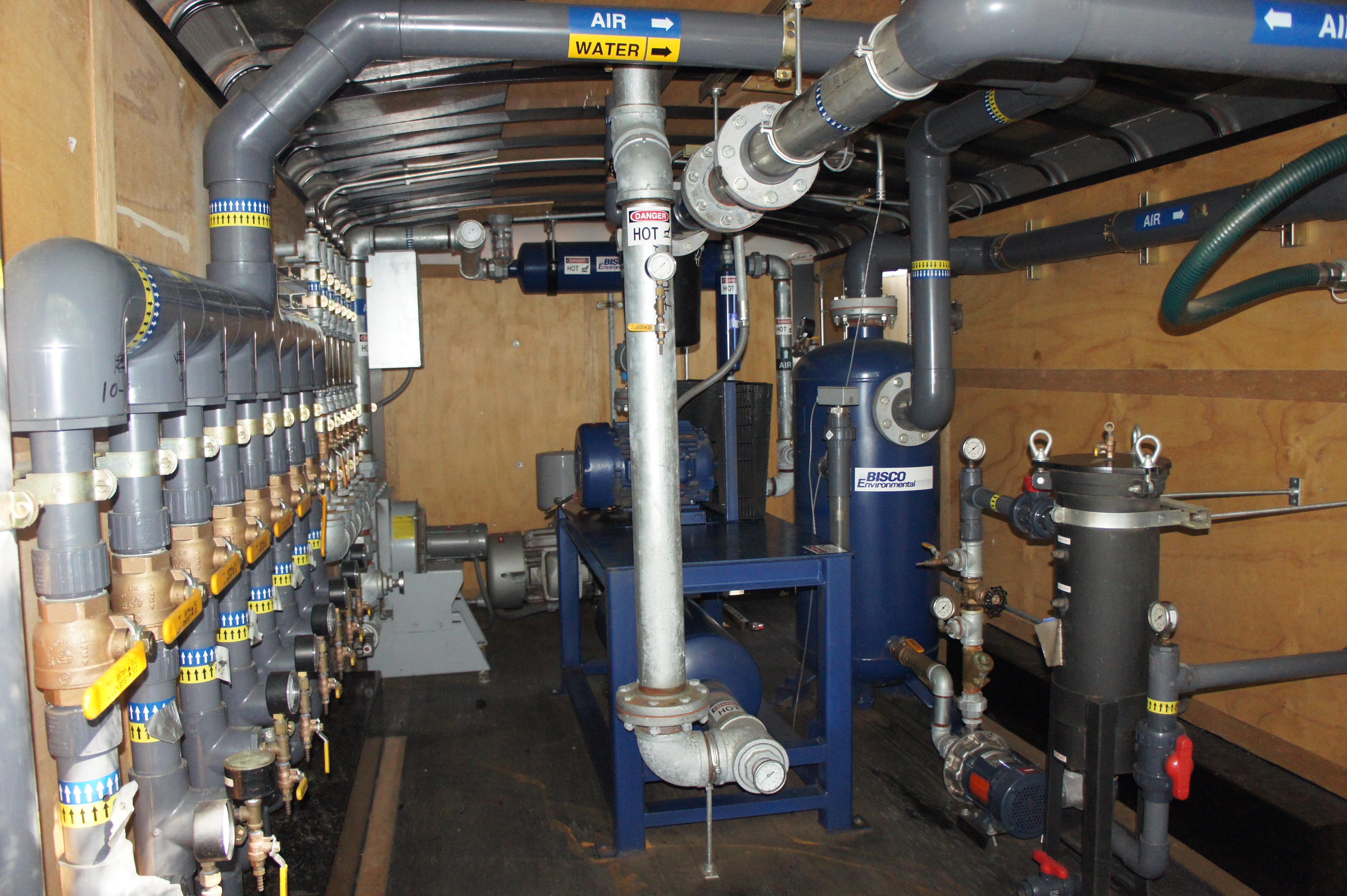

8 – point SVE manifold

Bisco – Knockout tank 80 gallon – level switch array

Bag filters

G&L – transfer pump – ½ hp, 230 volt, 1.9 amp, frame 56J

                                       Air Sparge System

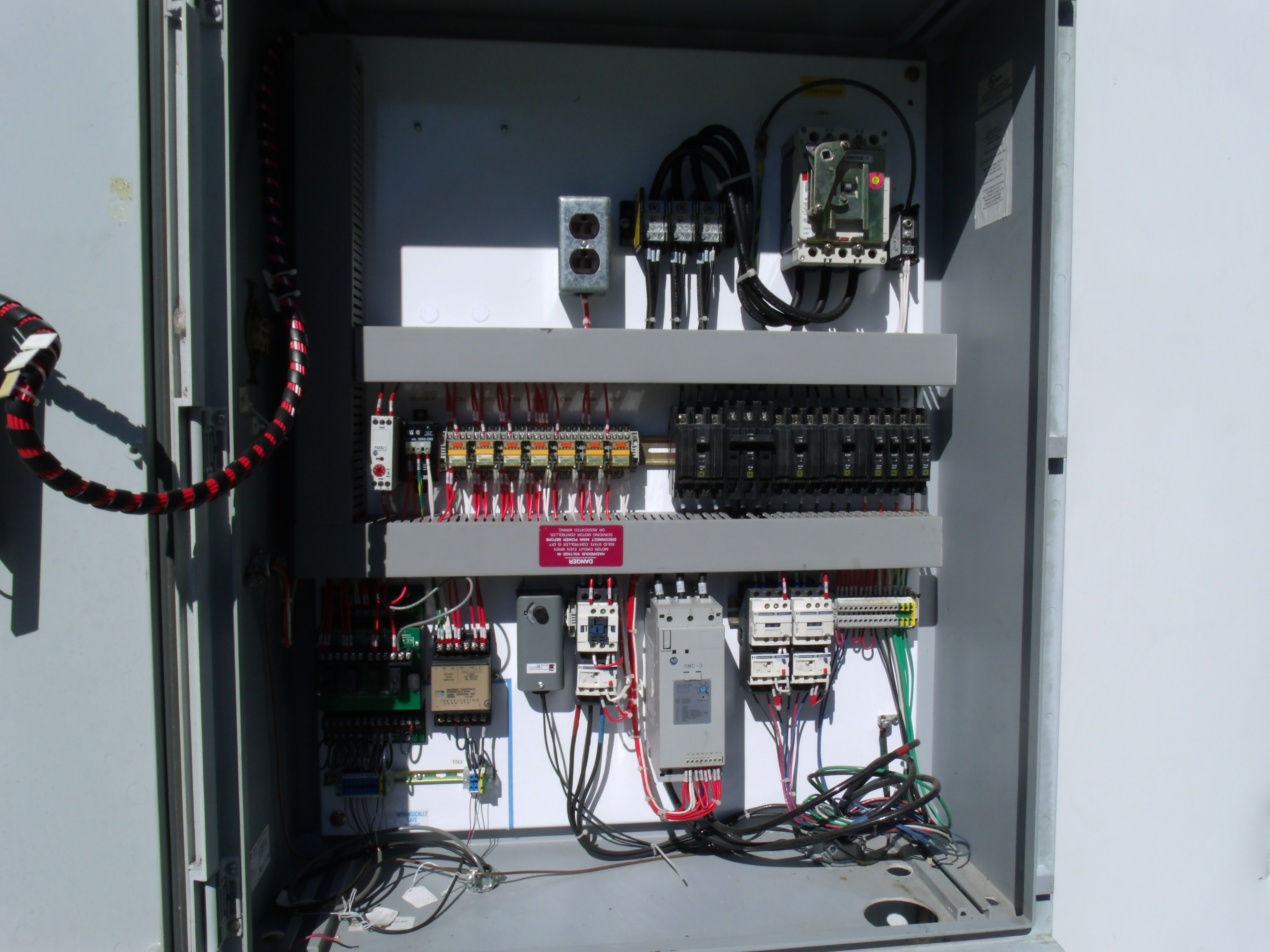

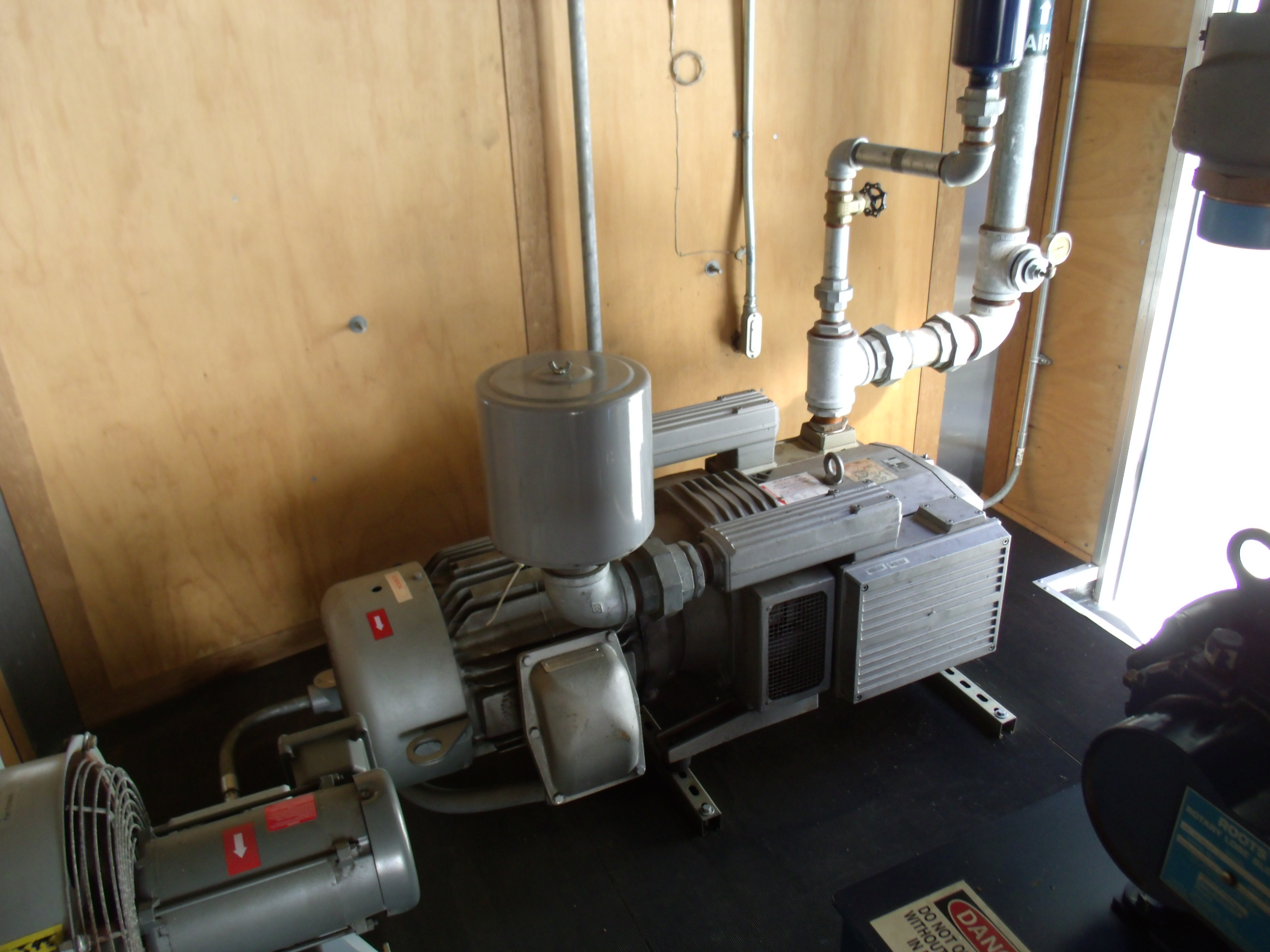

Becker Compressor – Becker DTLF 250 170 CFM @ 27 PSI – AB soft start control – 20hp, 230/460 volt, 52/26 amps, frame 286TC

http://store.kgpowersystems.com/dtlf-250-becker-oil-less-rotary-vane-compressor-173-cfm-25-psig-20-15-hp-kw-2-inch-inlet.aspx

6 – point Sparge manifold

American Industrial heat exchanger – ¼ hp

Liquid phase carbon filters

230V

3-phase
