(SVE/SPARGE-16) TRAILER, SVE/AIRSPARGE (#AES006F). *** $ 33,500.00 ***

(SVE/SPARGE-16) TRAILER (#AES006F)

27 point sparge 1 point SVE

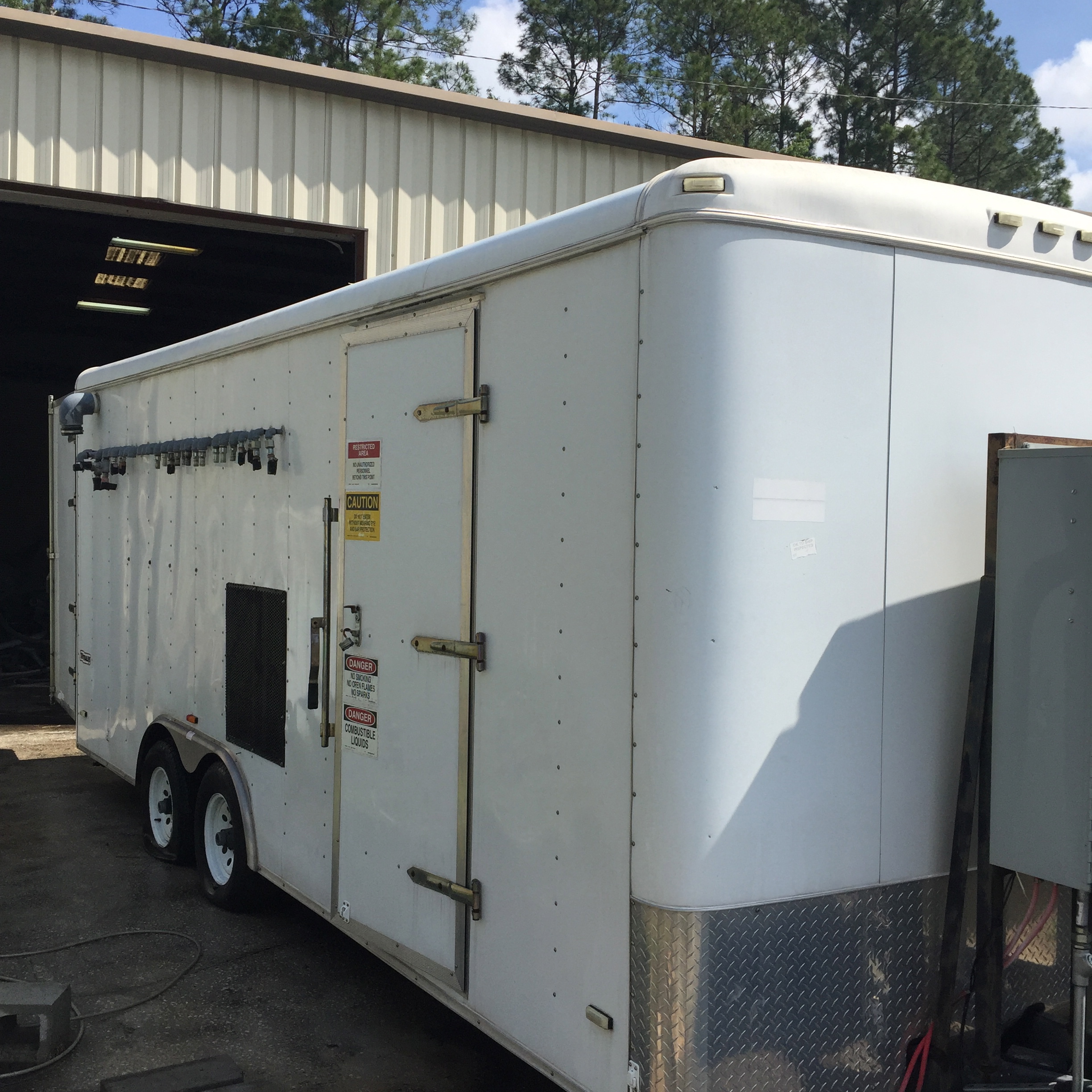

Trailer – TN Trailers 21 X 8 X 8 Tandem 5,000lb. axles 2 5/16 ball 6 lug

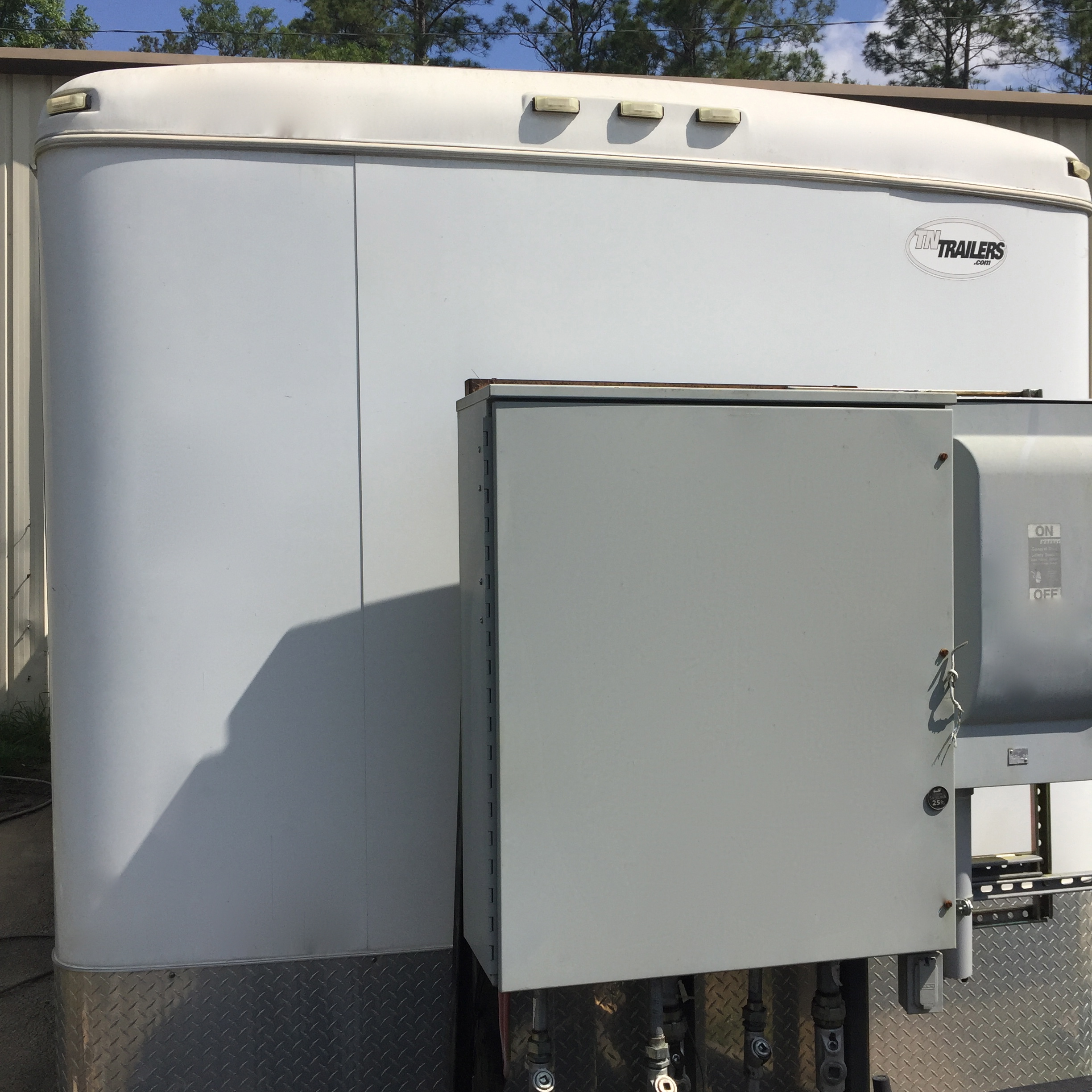

Disconnect – Murray 320V 3ph 2ooA fused

Control – Gems Messenger 570 PLC

SVE

SVE Blower – Large,  model # unknown mounted on top of K/O Tank       2-4” exhaust with bypass valves for carbon

1– 4” inlet stubbed through floor

3” site glass with level switch array

Transfer Pump – Myers CT-05 1 ½ hp 230V 3ph 4.5FLA

Sparge 27 point

Pump – Rietschle Thomas DLR – 400 25Hhp 230V 3ph 58FLA

3” hose to heat exchanger

Heat Exchanger – American Industrial ACA-6302-3 1 hp 230V 3ph 3.65FLA with Barksdale B100-120 temperature switch, pressure and temperature gauge

3” out to 3” manifold – 27- 1” out with Dakota 0-12scfm meters, pressure gauges and gate valves.

XP exhaust fan

(SVE/SPARGE-16) TRAILER, SVE/AIRSPARGE (#AES006F)

Three Stage Coalescing Filtration

Point Sparge Manifold

Heat Exchanger

100 Gallon Knockout Tank – Gallon

Float Switches

Transfer Pump

Bag Filtration with Flow Meter/Totalizer

Fire Extinguisher

Emergency Shut off
