(SVE/SPARGE-29) TRAILER, SVE/AIRSPARGE (#AES024F)(380 CFM – 125 “h20/37 CFM – 22 PSI). *** $ 23,500.00 ***

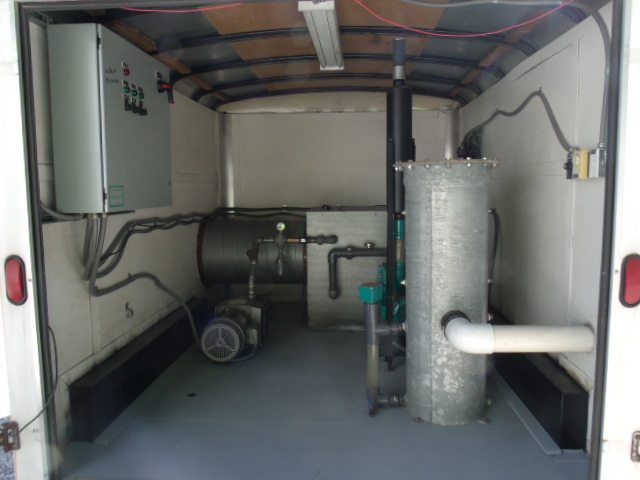

TRAILER # 24

SVE/SPARGE SYSTEM 230V 3ph

Trailer – Continental Cargo 11X8 tandem 3,500 lb. axles 2 5/16” ball

SVE Blower

Ametek Model # DR858BB72W 10 HP 230V 30FL, One 3” line out.

Max. 380 CFM – 125 “h20

40 gal. Knockout tank w/high level shutoff.

Sparge

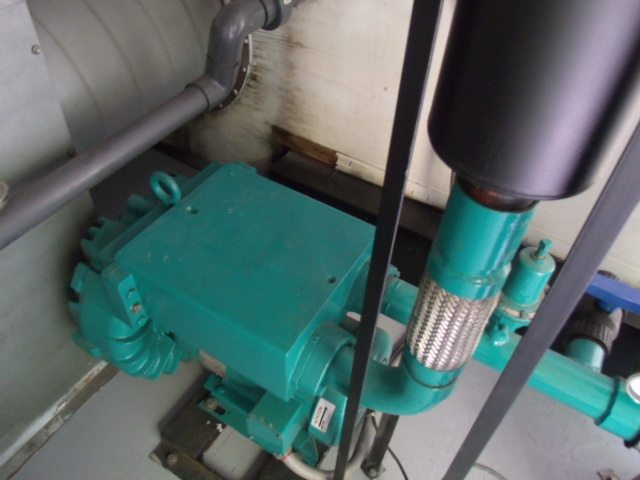

Air Compressor – Becker KDT 3.60 with pressure gauge 230V 18.9FLA 3ph

Max. 37 CFM – 22 PSI

https://beckerpumps.com/product/the-kdt-series/

1 ¼” regulator and ball valve into heat exchanger.

One 2” line out from heat exchanger with temperature gauge, no manifold 230V 18.9FLA 3ph

Flow through Heat Exchanger .25HP 230V .96A

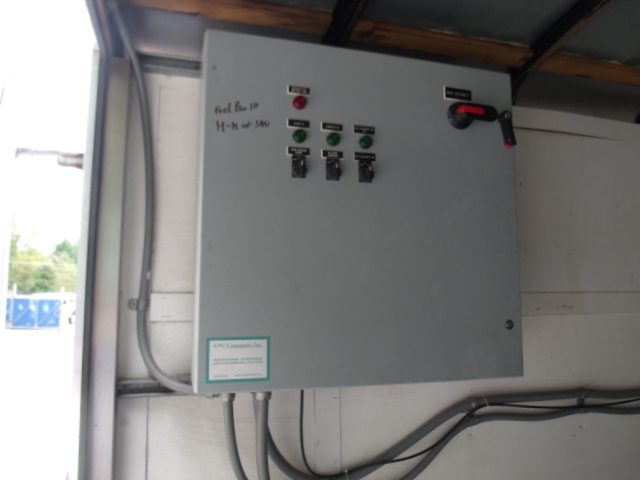

Internal Control Panel W/run timer. Control Panel is UL listed.

¼ HP Exhaust Fan 120V 1ph.

Speed control and thermostat on exhaust fan.

4’ flouresent light fixture
