(SVE/SPARGE-33) TRAILER, SVE/AIRSPARGE (#AES066F). *** $37,500.00 ***

TRAILER # 66F

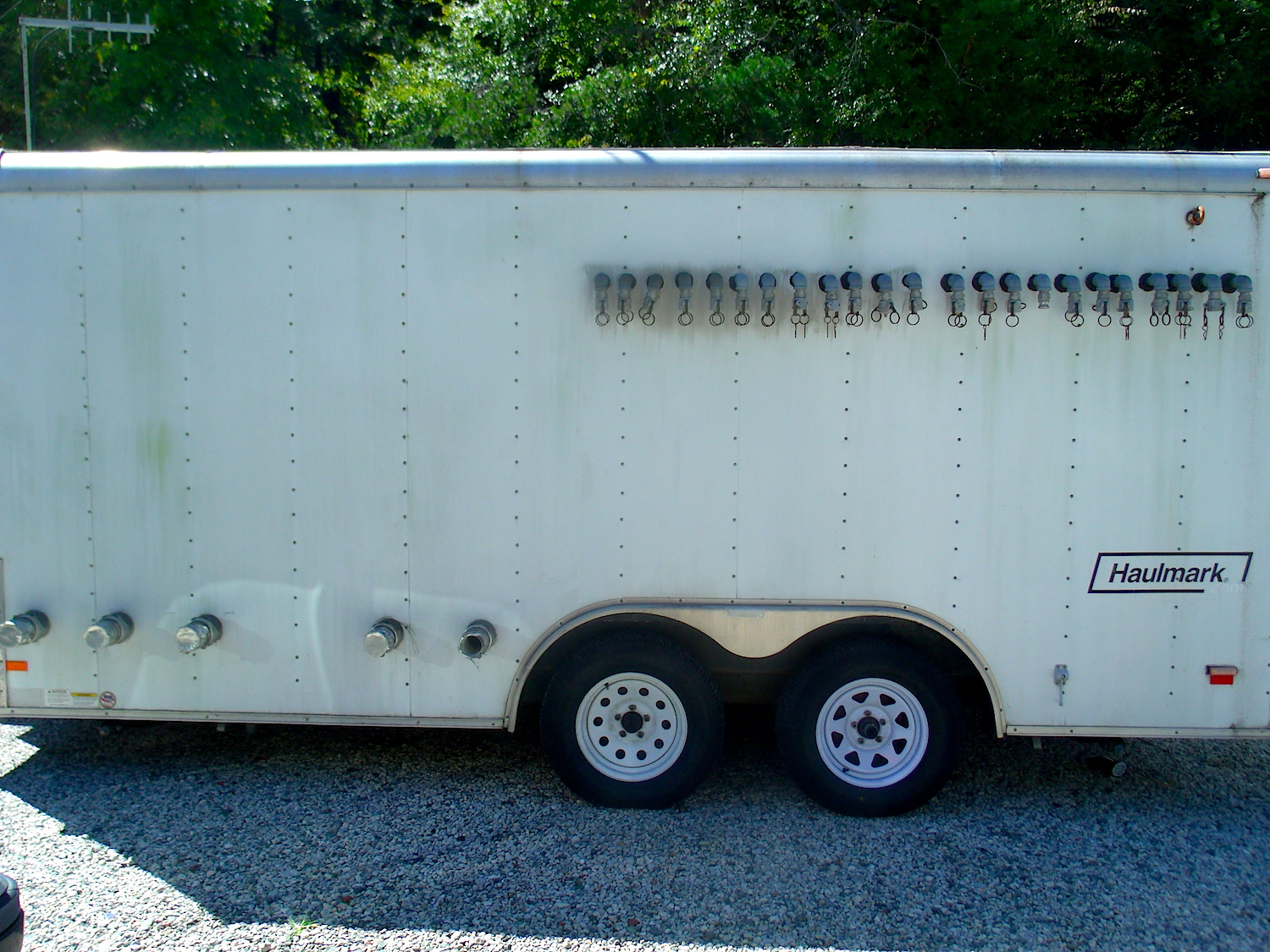

Trailer – Express 16 X 8 X 7 tandem axle 5 lug (7,000 lb)

Main Breaker – 230v 175a

Controls – Allen Bradley Micro Logic 1500 PLC with expansion cards

Allen Bradley Panel view 1000 touch screen controller

(2) Eaton Cutler Hammer model MVX9000 sensorless vector drives

Warrick 67 series level controller

(4) CEAG 2427 intrinsically safe devices

Connect Power 24vdc 6.5a power supply

(3) Cutler Hammer starters CE15ANS3

*Current meters on both sparge compressors and both blowers

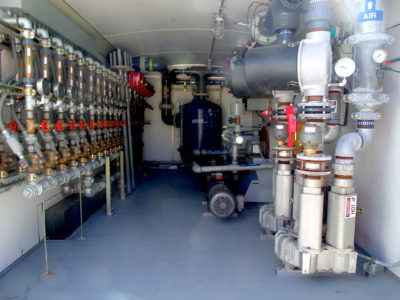

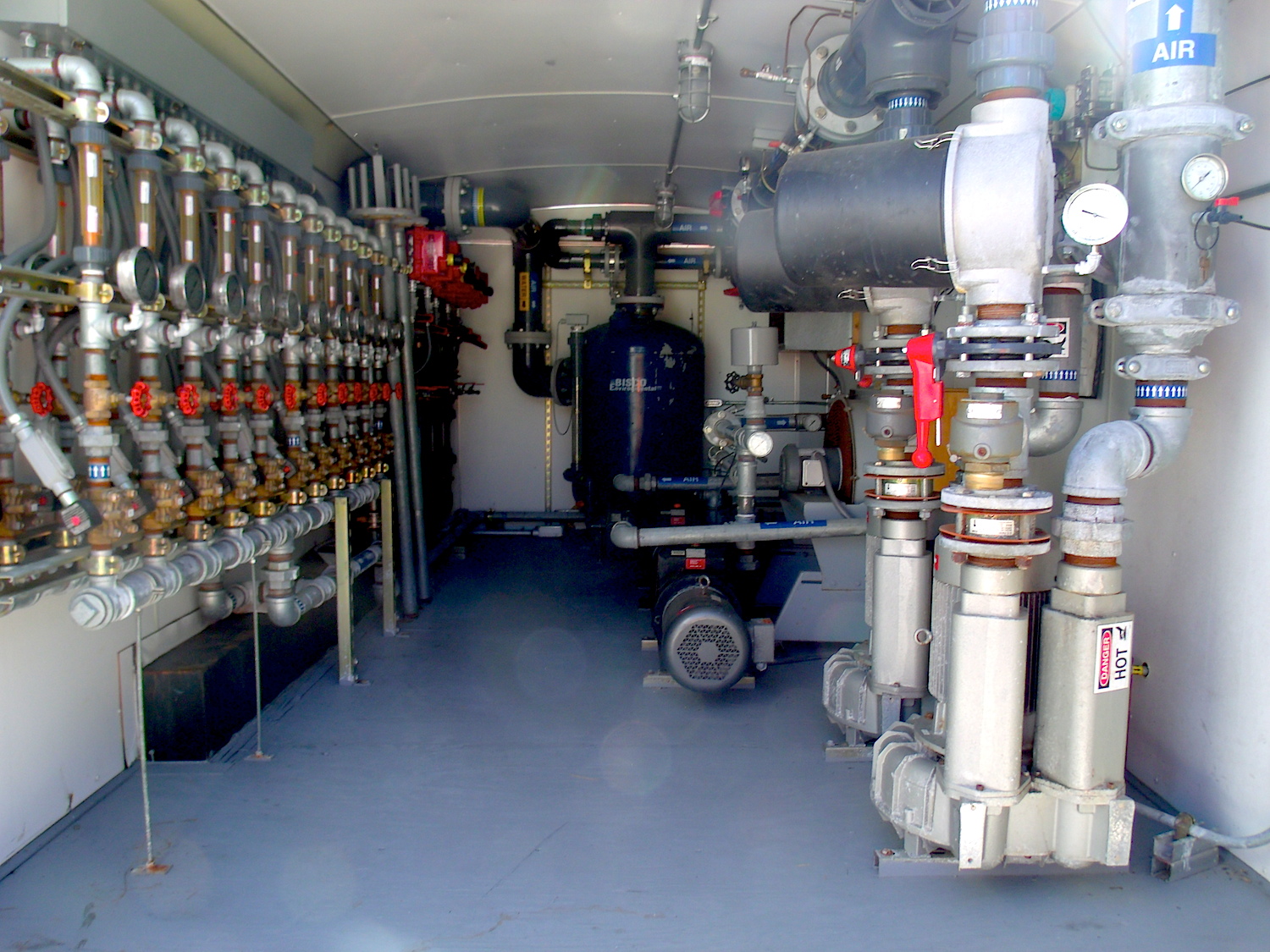

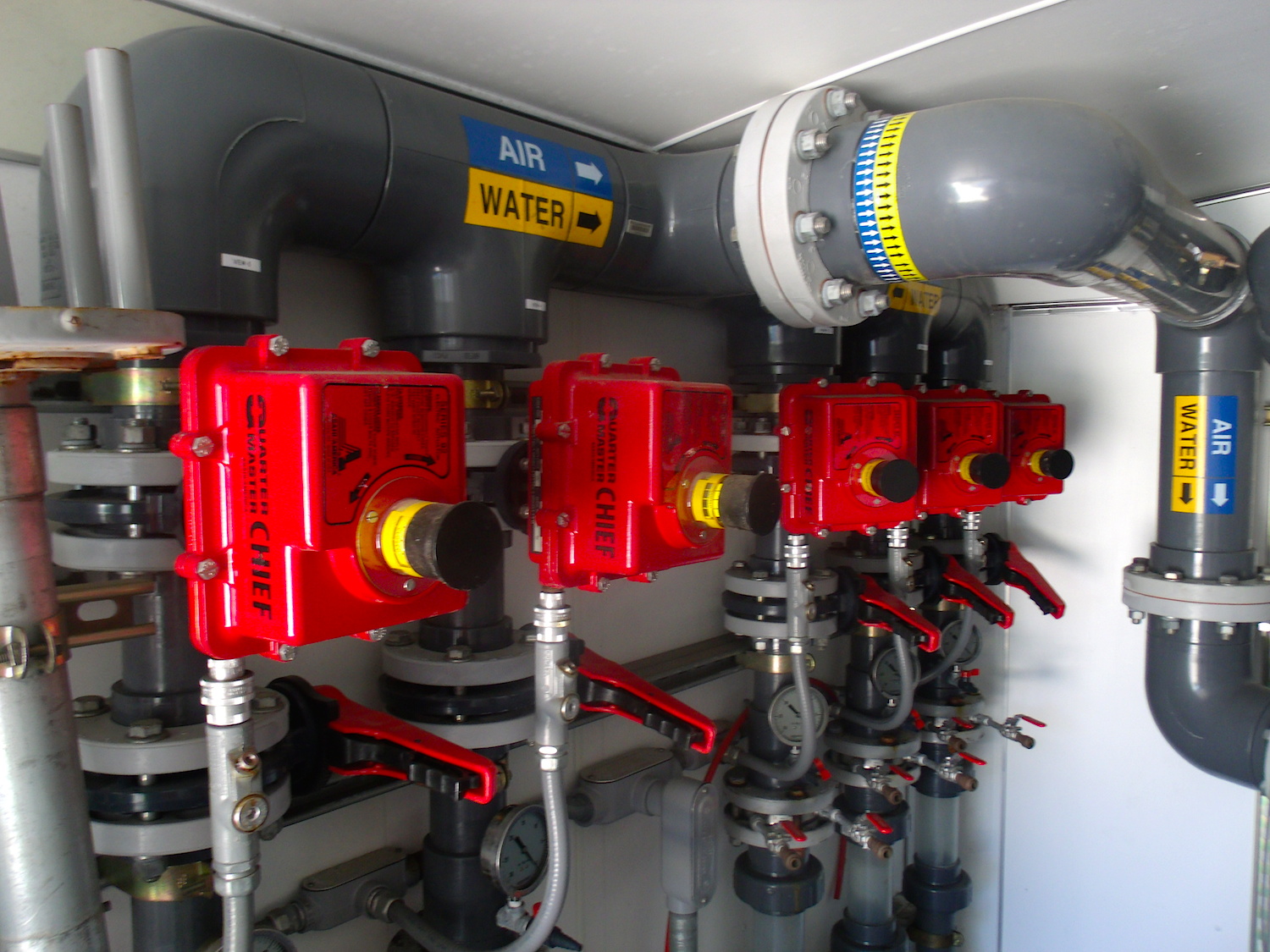

SYSTEM – 5-3” recovery points, 5 ASAHI series 92 electronic actuators

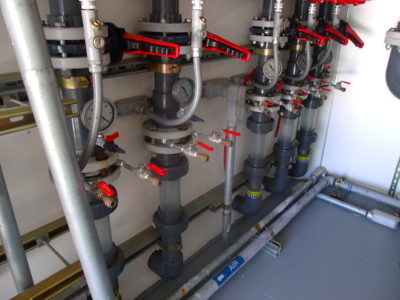

5 manual valves, individual sight glasses

Bisco 200 gal. air/water separator tank with site glass and level switch array.

Main Pumps – Riteschle/Thomas vertical model SAP 530 190-220 mBar

5.5/6.5 hp

Sparge Compressors – Rietschle/Thomas DLR 100 5/7.5hp

Heat Exchanger – American Industrial model ACA 3242-L 20” 1/2 hp 230v 3ph 2fla

Exhaust Fan – 120v 1ph XP
