(SVE/SPARGE-36) TRAILER, SVE/AIRSPARGE (#AES-28F). *** $38,500.00 ***

Trailer 28F

19 Point Sparge 1”   7 Point SVE 2” inlets

Trailer – GT Express 22 X 8 X 7 V front, tandem 3,500 lb. axles 5 lug with separate sparge and SVE rooms

Front mounted 150 A fused disconnect

Front mounted control panel with dead front controls

Pro Controls PLC logic


(7) Dynamatic 2” model 6CX21 automatic flow valves externally mounted

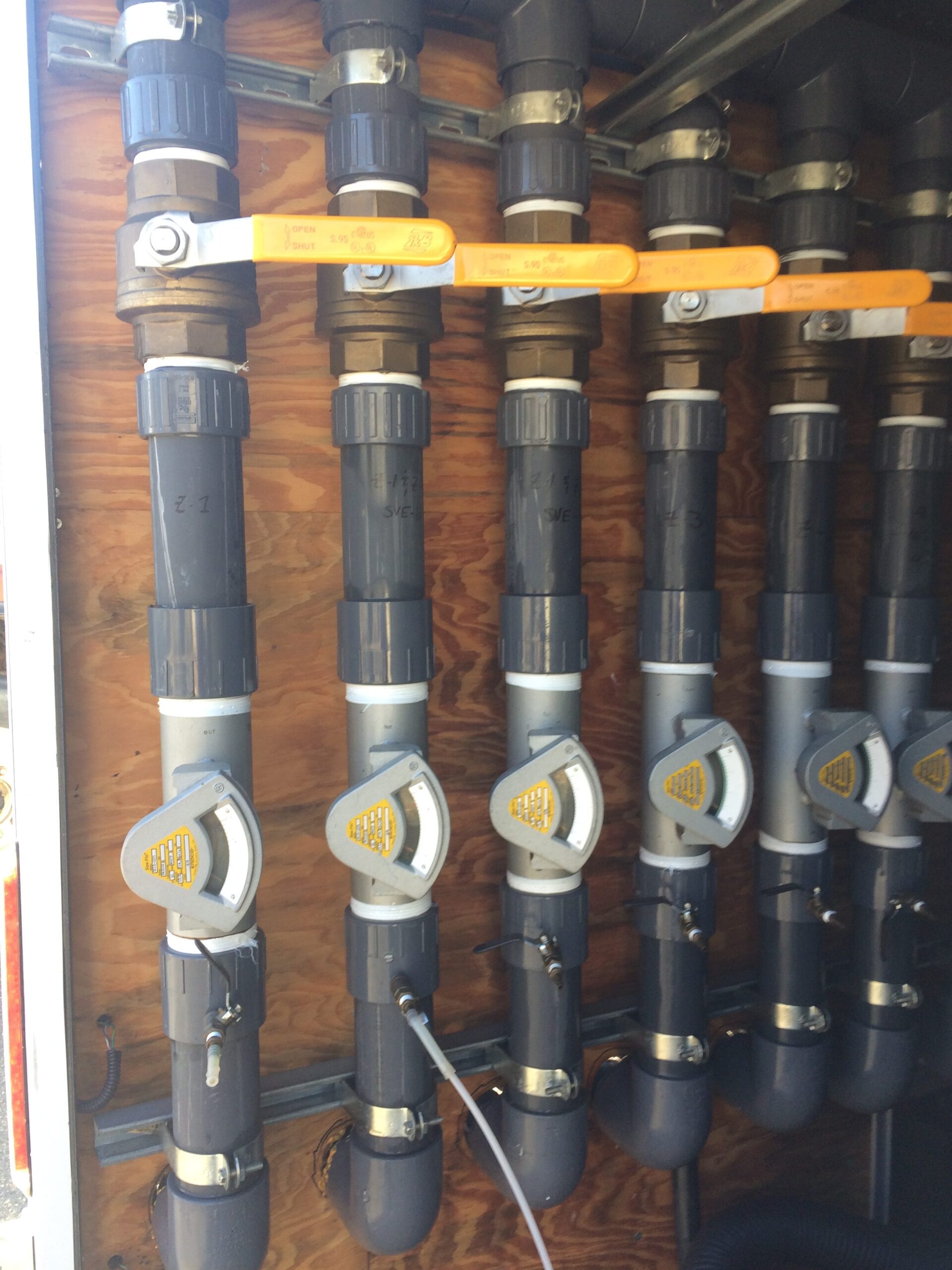

(7) Erdco See-Flo model 3123-12T5 flow rate meters 0-50

(7) manual ball valves with gauges and sample ports

SVE Pump – Ametek EN909BG72WL 15hp 32fla at 240v 100” H2O max.

Carbon-Air 55 gal. carbon vessel on exhaust with bypass valve

K/O tank – 150 gal. with site glass and level switch array

K/O transfer pump – Gould NPE cat# 1 ST1F7B4 1 ½hp 4.8fla

GPM meter – DLJ 1”

Carbon Vessel – PentAir p/n CH30953 21 X 62 1” discharge through floor

Exhaust Fan – Dayton 12” ¼ hp model 3XK51F 120v 3.8fla

Sparge, 4 zones

Zone 1-10 points, zone 2-8 points, zone3-10 points, zone 4-1 point. Each zone is solenoid actuated. Each sparge point has Erdco model 3213-O4TO flow rate meters with pressure gauges and manual gate valves.

Sparge Compressor – Quincy QSLP15 p/n 1500006 15hp 37fla

(3) In line Filters – Quincy CPN T00300, DCN T00300, and ACN T00300

Compressor Tank – Manchester-IN 80 gal. 200psi max.

Regulator – SpeedAir with gauge and Ashcroft model K17M0242C160 4/20 ma pressure transducer. Also has Verabar #V100-05-H-R pressure sensor into ABB 2600T series pressure transmitter

XP lighting and switches

E-stops in both SVE and Sparge rooms
