(SVE/SPARGE-43) TRAILER, SVE/AIRSPARGE – SVE Max flow 526 CFM Max Vacuum 16″hg, AS – Max Flow 69 CFM Max Pressure 22 PSIG (#AES-3F). *** $28,500.00 ***

Trailer 3F SVE/Sparge (bisco unit)

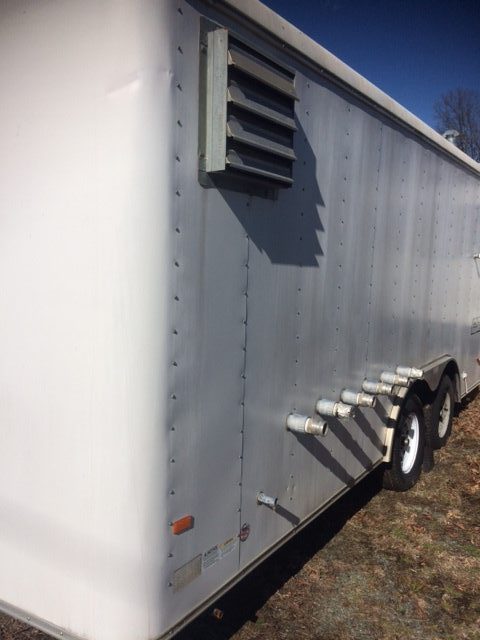

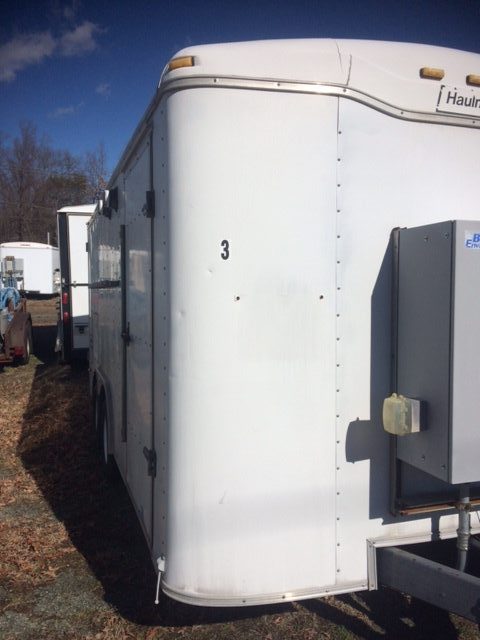

Trailer – HallMark tandem 3,500lb axles 5 lug 2 5/16” ball

Power – 125A circuit Breaker in panel

Control Panel – front mount with dead front controls

Control – HES5000CX003A7 mini OCS/RCS operator control station

Mounted in dead front

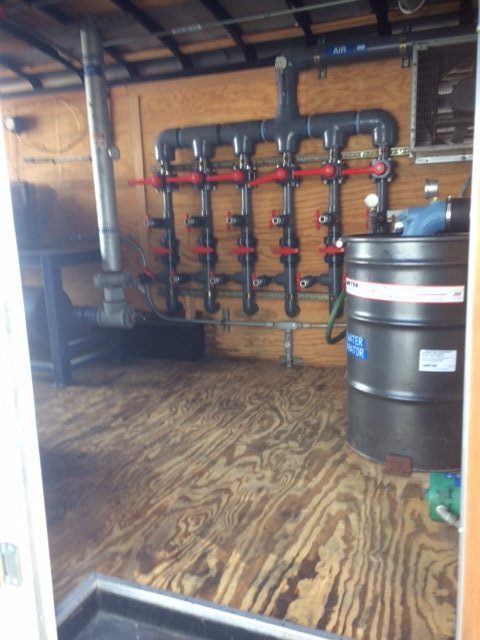

6-point 2” into 4” manifold with bypass valves into 2-4” outs

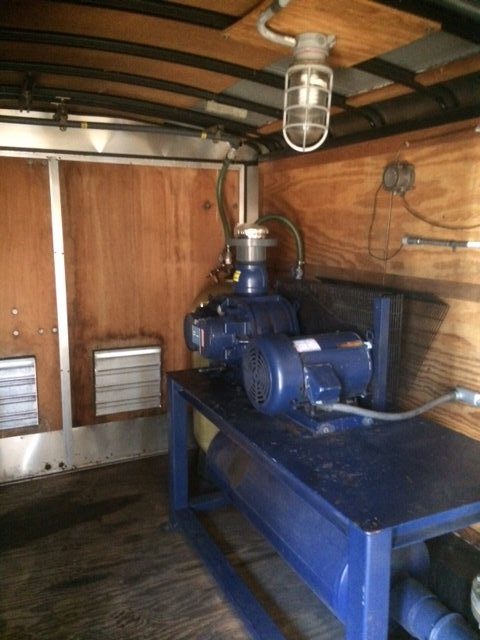

Vacuum Blower – Roots 65 U-RA1 10HP 230V 3ph 24FLA

Max flow 526 CFM

Max Vacuum 16″hg

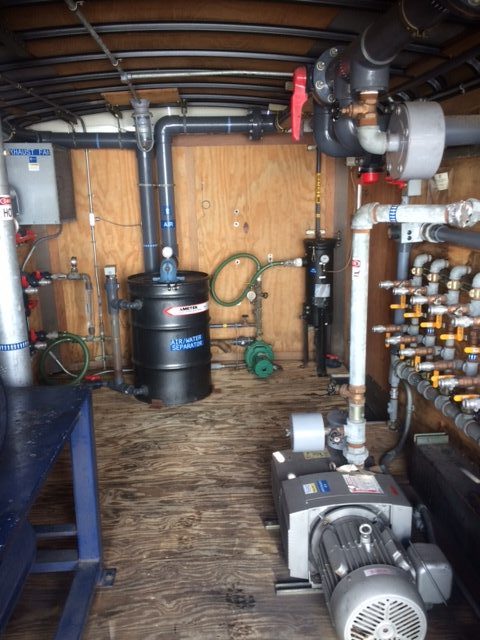

A/W separator tank – 55 gallon drum type with L500 series level switch array in site glass with knuckle valve and dwyer flow gauge on exhaust

A/W separator Transfer Pump – Myers OP1D-3 230V 1ph 3.2FLA with output pressure gauge and sample port

Bag Filter housing – MSC Liquid Filtration Corp with input pressure Gauge and Mercoid control pressure switch

In line Filter – Soleberg #CT234P-400C

GPM Meter – Badger Model 70 Recordall

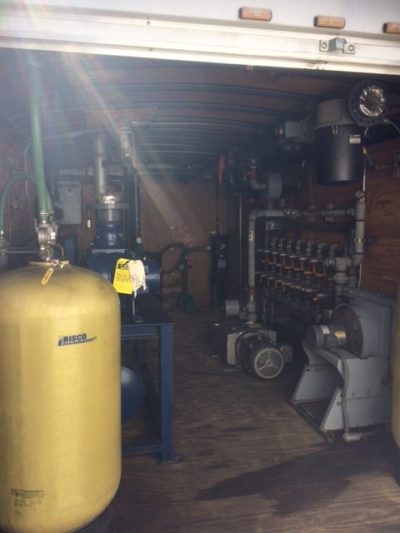

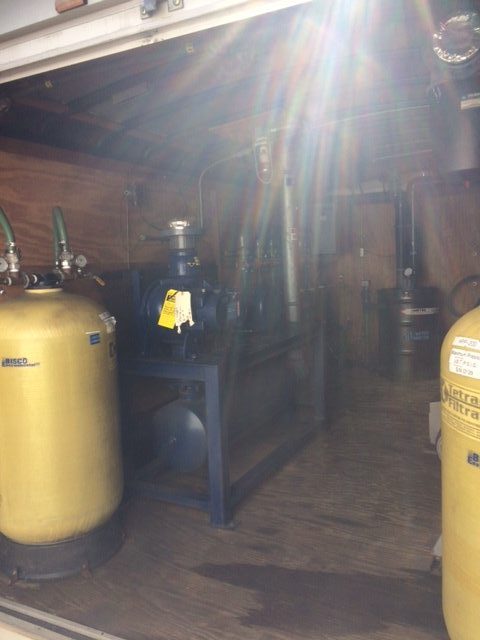

2- Tetra-solv HPP200 carbon vessels in series on transfer out with pre and post pressure gauges to 1” out

Air Sparge

Sparge Compressor – Becker KDT 3.100 10HP 230V 3ph 26.8FLA

Max Flow 69 CFM

Max Pressure 22 PSIG

Heat Exchanger – American Industrial ACA-3182-3 1/4HP 230V 3ph 1.3FLA in line temperature gauges pre and post on heat exchanger

Barksdale ML1H-H203 low pressure switch

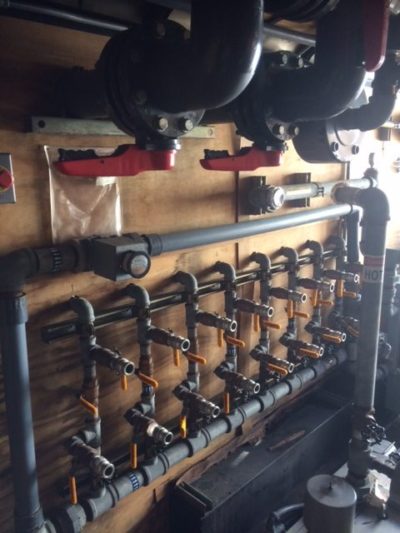

8 point manifold – 1” bypass and flow rate meter quick connections

In line flow meter – Ametek on manifold

XP lighting

E-Stop inside trailer
