(SVE/SPARGE-44) TRAILER, SVE/AIRSPARGE – SVE 495 CFM @ 14″Hg, AS Max Pressure, 31.9 psi ; Max Air Flow, 166 CFM(#AES-5F). *** $27,500.00 ***

Trailer 5F    SVE/Sparge   (maple leaf)

Trailer – 20 X 8 X 7 tandem 5,000lb axles 6 lug with 2 5/16” ball manufacturer is unknown

230V 3ph 100A Square D fused disconnect

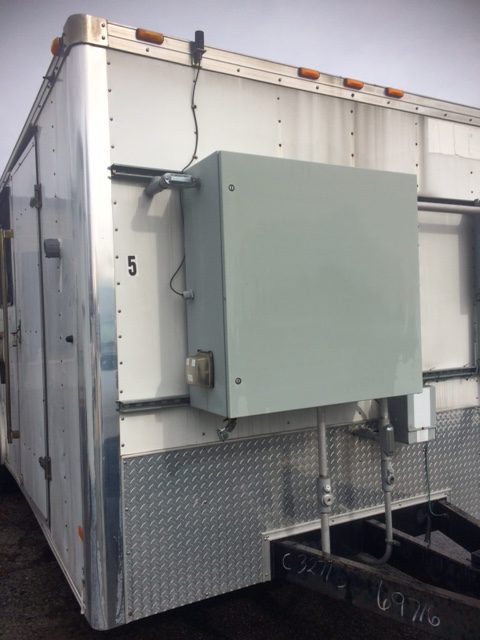

Externally mounted control panel with dead front controls 36 X 36 X 12

Control – Direct Logic 06 PLC

SVE-2 point

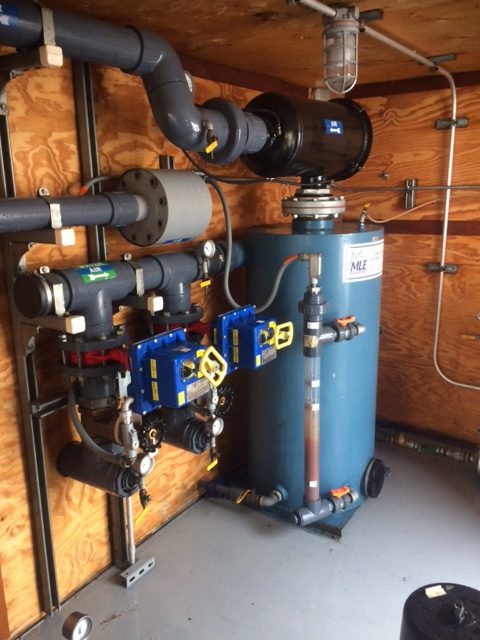

2- 4” points with Indelac model MR7BE07-15PT auto actuated/manual valves with sample ports and vacuum gauges

A/W seperator Tank – Maple leaf 60 gallon with sight glass and level switch array

Seperator Transfer Pump – Gould NPE ½ hp 230V 3ph 1.9FLA

Holding Tank – Ace Rotomold 210 gallon model V100210SWN poly tank with manual drain

SVE pump – Gardner Denver model GLCADPA cat.# 4LP (roots type)

Flow 495 CFM @ 14″Hg

10HP 230V 3ph 23.9FLA (belt driven) 3” exhaust

In line magnehelic 0-10” h2o

Exhaust carbon treatment – 3- Carbtrol 55 gallon carbon drums 3”


Sparge – 16 point

Sparge Pump – Gardner Denver model C-DLR250 15HP 230V 39FLA

Max Pressure, 31.9 psi ; Max Air Flow, 166 CFM

In line Pressure Switch – Mercoid series A1 with temp and pressure gauges

Heat Exchanger – American Industrial model ACA-3302-3-E 33” fan

1HP 230V 3ph 3.4FLA

Manifolds – 2-8 point with Dwyer model RMC-122-SV flow rate meters

Individual pressure gauges and manual gate valves – 1” out

*Each manifold is actuated by asco solenoid valves*

Exhaust Fan – XP 1/3HP 230V 1ph 3.1FLA thermostat controlled

XP lighting

Emergency shutoff inside trailer
